Detecto Model 6500 Wheelchair Scale, Portable, Digital, 1000
Documentation:

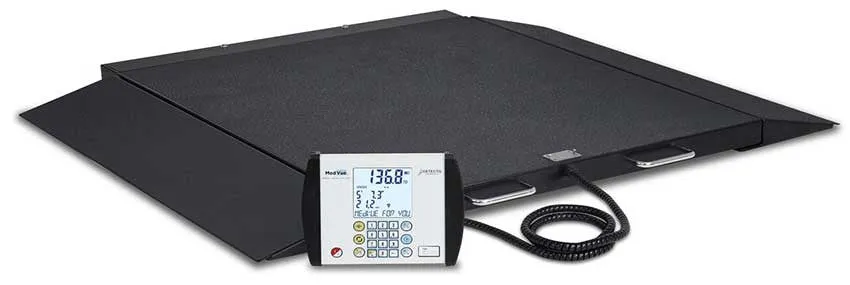

The versatile 6500 portable, low-profile wheelchair scale features a high 1000-lb/450-kg capacity, two-way easy-access ramps, flexible cable remote display for tabletop or wall-mount viewing, 2.2-in/5.6-cm thin platform for easy accessibility, 0.2-lb/0.1-kg clinical accuracy, black rubber mat for traction, two guide handles and two wheels for vertical transport mode, and 32 in x 36 in / 81 cm x 91 cm platform size. Despite their size, these wheelchair scales are amazingly easy to handle. Since the display is connected to the scale by a long coiled cable that extends up to 14 ft / 4.2 m, it can be positioned where the healthcare professional can most easily read the results. The 6500 comes with the MedVue multi-functional indicator with alphanumeric keypad and RS232 and USB ports (optional Wi-Fi and Welch Allyn connectivity). Displays height, weight and body mass index onscreen simultaneously.

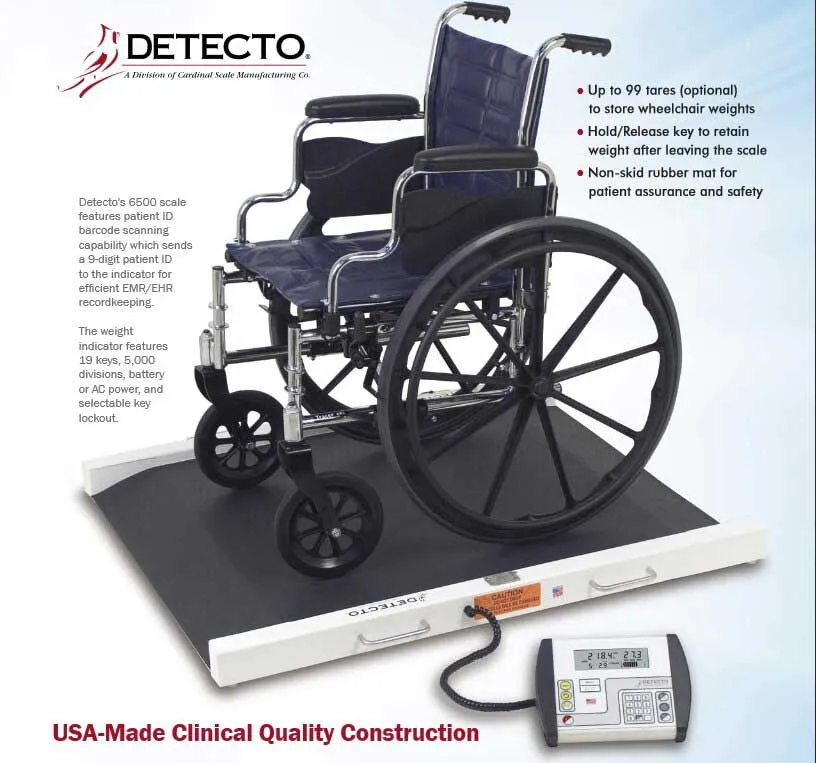

With built-in ramps for entering and exiting the scale, Detecto’s American-made 6500 portable scale is perfect for any wheelchair application. You may key in the wheelchair weight, so that only the patient weight is displayed. A low-profile easily accessed platform measures 30 x 32 inch (76 x 81 cm flat portion). Powered by 6 C batteries (not included) or optional AC adapter. l dual wheels and carrying handles, EMR/EHR connectivity for efficient records via the scale’s RS232 serial, USB, or optional wired or Wi-Fi Ethernet communications. 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity. OIML EC Class III model available.
Features
- Two-Way Easy Access Ramps
- Robust 1000 lb/ 450 kg capacity
- Low Profile Platform for easy patient access

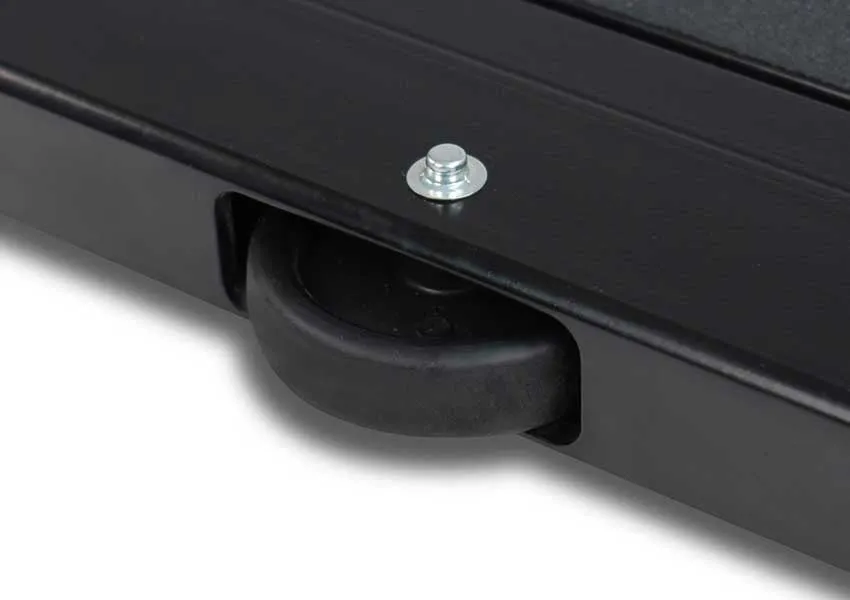

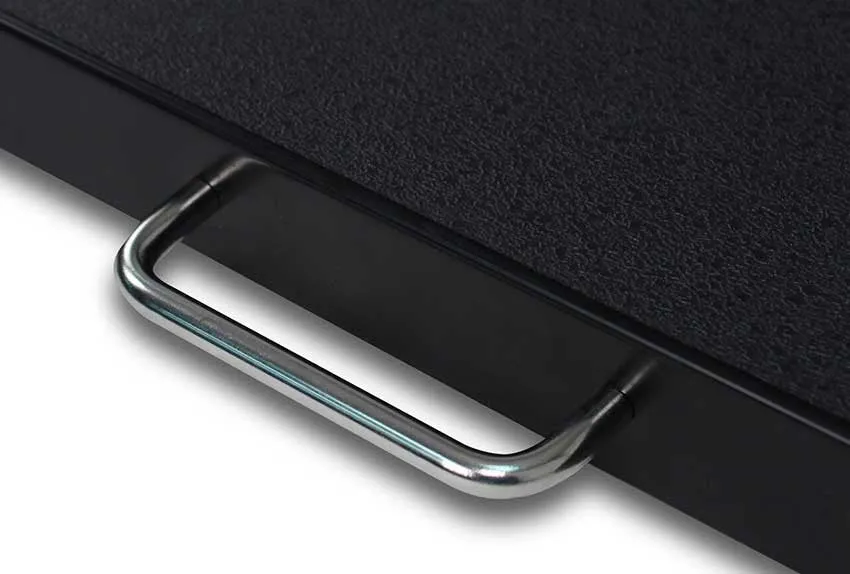

- l dual wheels and carrying handles for transport
- EMR/EHR ready serial, USB, and optional Ethernet connectivity
| Specification | Description |
|---|---|
| 6500 Capacity: | 1,000 lb x 0.2 lb / 450 kg x 0.1 kg |
| 6500KGEU Capacity: | 300 kg x 0.1 kg or 350 kg x 0.2 kg |
| Platform Size: | 30 x 32 in / 76 x 81 cm |
| Keyboard: | 19 key, color-coded, sealed membrane |
| Connectivity: | RS232 serial, USB and optional wired and Wi-Fi Ethernet |
| Display Dimensions: | 9.5 W x 6.6 H x 2.1 D in / 24 W x 17 H x 5 D cm |
| Power: | 6 “C” cell Alkaline, Ni-Cad or NiMH batteries OR an optional 12 VDC 1.25A wall plug-in AC power adapter(not included) |
| Resolution: | 5,000 divisions, max. |
| Operating Temperature: | 14 to 104°F (-10 to 40°C) |
| Enclosure Construction: | Aluminum |
| Shipping Weight: | 65 lb / 29.4 kg |
| Display: | 5 digit, seven segment, 7/8 inch (22.23 mm) high LCD weight digits |
