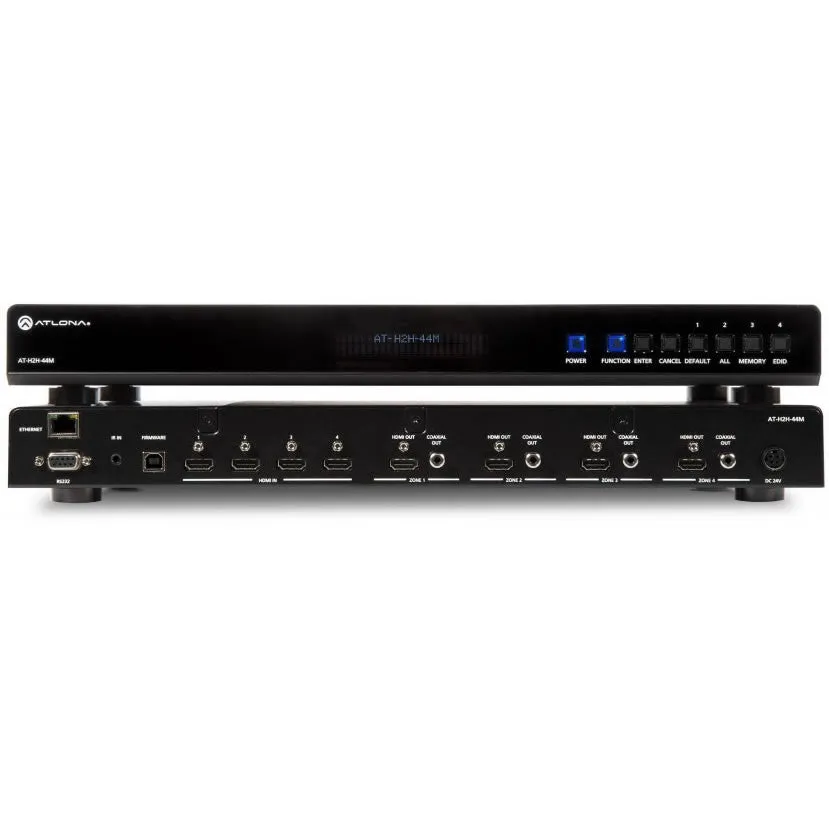

Multiple control options, HD resolutions, and the best audio, the Atlona 4 by 4 HDMI Switcher is built for your home and professional needs. With the ability to pass 1080p, 1920x1200, all Lossy and Lossless audio formats (including Dolby TrueHD and DTS-HD Master Audio), full 3D and ARC, the AT-H2H-44M provides a full range of features that ensures the highest quality experience whether you're watching a movie, giving a presentation, and more.
Built in EDID compatibility
- The H2H-44M ensures compatibility with displays and manages EDID communication between sources and displays. The H2H-44M automatically provides a compatible EDID at start up, and features an EDID learning function that can be customized for any connected component.
Future ready
- The H2H-44M feature a field serviceable firmware port that allows for quick and easy upgrades. This unit also is equipped with an Ethernet port that, once enabled via upgrade, will allow for TCP/IP control. (coming soon)
Key Features
- Full 3D, Dolby TrueHD, and DTS-HD Master Audio pass through
- S/PDIF for audio loop out
- Audio Return Channel (ARC) pass through
- Dual purpose wall/rack mount ears included
General Information | |
Manufacturer | Atlona Technologies |
Manufacturer Part Number | AT-H2H-44M |
Brand Name | Atlona |
Product Name | 4 by 4 HDMI Matrix Switcher |
Product Type | Audio/Video Switchbox |
Technical Information | |
Number of Input Devices Supported | 4 |
Number of Displays Supported | 4 |
Video | |
Graphics Modes | WUXGA |
Maximum Video Resolution | 1920 x 1200 |
Scan Format | 1080p |
Interfaces/Ports | |
HDMI In | Yes |
HDMI Out | Yes |
Number of HDMI Inputs | 4 |
Number of HDMI Outputs | 4 |
Media & Performance | |
Maximum Operating Distance | 30 ft |
Physical Characteristics | |
Form Factor | Rack-mountable |
Height | 1.7" |
Width | 17.3" |
Depth | 10" |
Weight (Approximate) | 6.46 lb |
Warranty | |
Limited Warranty | 3 Year |
