Product Overview

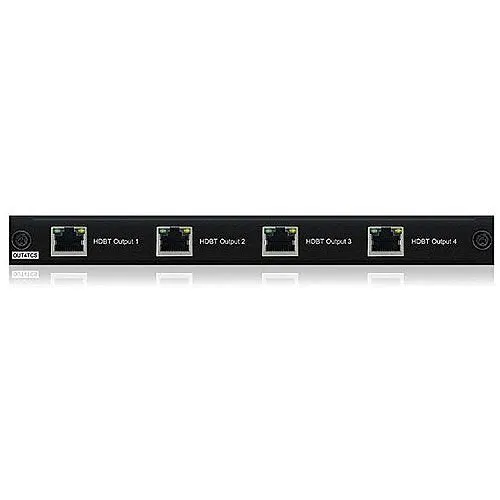

The Blustream PRO-OUT4TCS output board offers 4x independent HDBaseT outputs utilizing CSC technology allowing support of HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K to 70m). The PRO-OUT4TCS features independent downscaling of 4K video inputs on the CSC HDBaseT outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. The PRO-OUT4TCS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Main Features
- Advanced HBase technology offering distribution of video and audio over a single CAT cable
- Features 4x HDBaseT outputs for connection to compatible HDBaseT receivers
- Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
- Supports 4K @ 60Hz 4:4:4 UHD video up to 70m
- Independent downscaling of video input resolutions up to 4K @ 60Hz 4:4:4 to the following formats: 1080p @ 60Hz (for screens that do not support 4K)
- Extends HDMI 1080p video up to 100m
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Supports PoH (PoE) to power Blustream HDBaseT Receivers
General Information
Name: Blustream PRO-OUT4TCS Pro Matrix 4x HDBaseT 18G Output Board, Blustream
Category: Blustream, Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders, Pro HDMI Switchers, AV Conferencing Solutions
UPC Code: 9340242002358
Country of Origin: China. Country of origin is subject to change.
