Detecto-BRW1000 Bariatric Portable Wheelchair Scale 1000 lb capacity

Documentation:

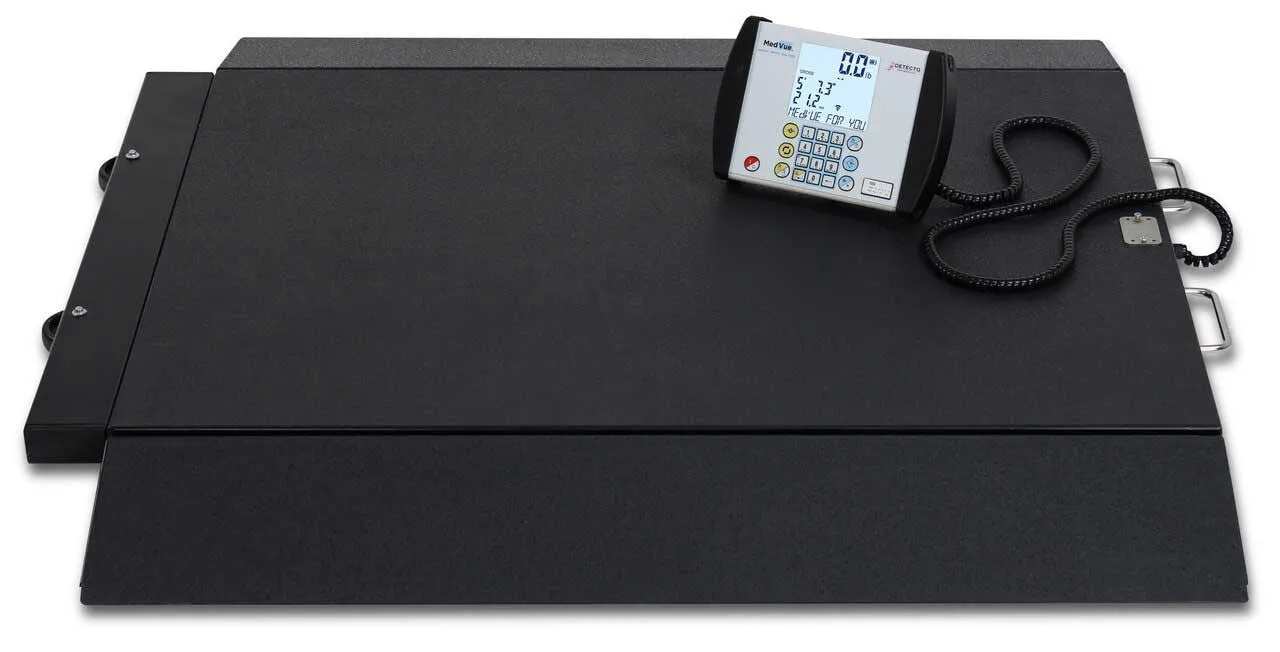

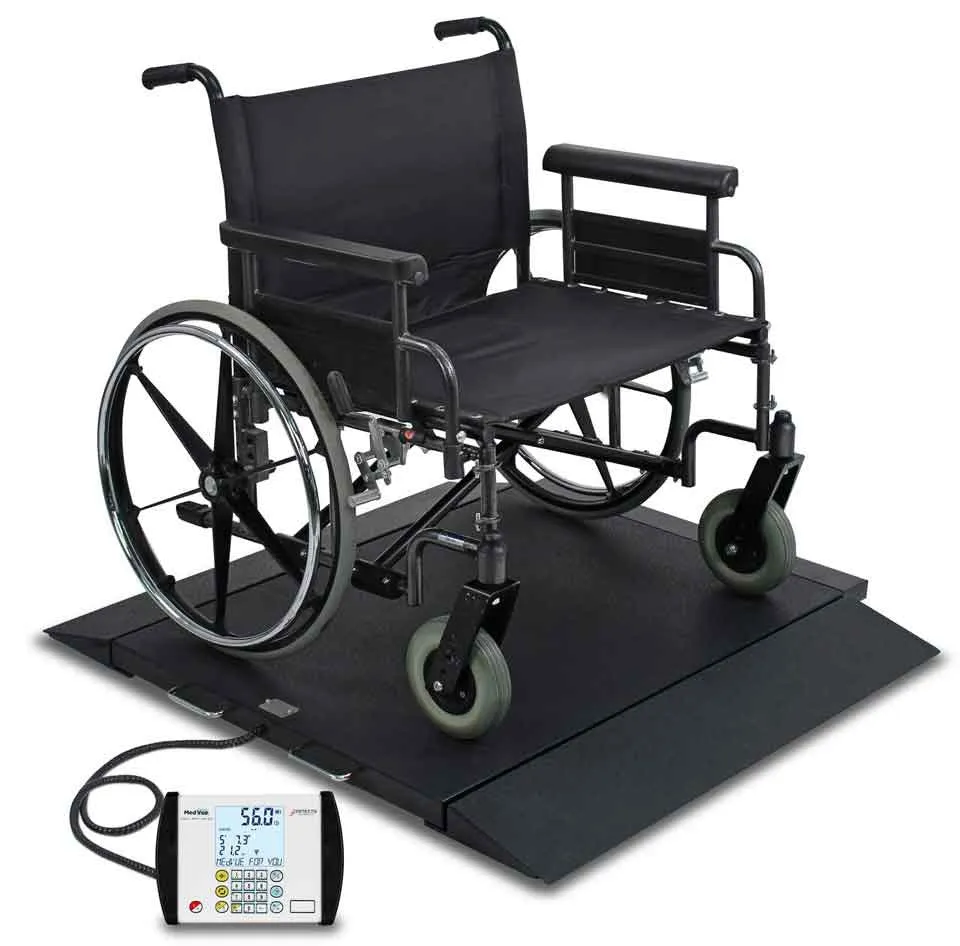

Detecto's portable BRW1000 bariatric wheelchair scale features a high 1,000-lb/450-kg capacity, two-way easy-access ramps, flexible cable remote display for tabletop or wall-mount viewing, 2.2-in/5.6-cm thin platform for easy accessibility, 0.2-lb/0.1-kg clinical accuracy, black rubber mat for traction, two guide handles and two wheels for vertical transport mode, and 32 in x 40 in / 81 cm x 101 cm platform size. Despite their size, these wheelchair scales are amazingly easy to handle. Since the display is connected to the scale by a long coiled cable that extends up to 14 ft/ 4.2 m, it can be positioned where the healthcare professional can most easily read the results. The 6500 comes with the MedVue multi-functional indicator with alphanumeric keypad and RS232 and USB ports (optional Wi-Fi and Welch Allyn connectivity). Displays Height, Weight, and Body Mass Index onscreen simultaneously.

Features

• 1000 lb/450 kg capacity
• 2-way easy access ramps
• 6 C batteries (not included)
• Black rubber mat for traction
• BMI calculation
• Coiled cable remote display extends up to 14 ft/4 m
• EMR/EHR Ready
• l wheels ease transport
• Low-profile 2 in/56 mm high platform
• OIML EC Class III Model available
• Platform Accommodates bariatric size wheelchairs
• Ramps rest on floor for easier patient access
• Spacious 32 in x 40 in / 81 cm x 101 cm platform
• Versatile indicator bracket for tabletop or wall-mount
• Vertical mode for transport and storage
• Wi-Fi and Ethernet optional

Specifications

BRW1000 Capacity: 1000 lb x 0.2 lb / 450 kg x 0.1 kg

BRW1000KGEU Capacity: 300 kg x 0.1 kg / 400 kg x 0.2 kg

Platform Size: 32 in x 40 in x 2.2 in / 81 cm x 101 cm x 5.6 cm

Ramp Size: 40 in (101 cm) W x 7.9 in (20 cm) L each

Cable Length: 6 ft / 1.8 cm coiled cable, 14 ft / 4.2 m fully extended (from scale to indicator)

Power: Optional model MV1PWR AC adapter or 6 C batteries (not included)

LCD Digits: 0.9 in / 22 mm high LCD, 5 digit, 7 segment

Keypad Buttons: ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys

Connectivity: RS232 serial, USB and optional wired and Wi-Fi Ethernet

Operating temperature: 14 to 104 degrees F / -10 to 40 degrees C

Net Weight: 120 lb / 54 kg

Shipping Weight: 123 lb / 56 kg

Guide Handles: 2 included

Transport Wheels: 2 included

Country of Origin: USA

UPC Code: 809161139303

Indicator Dimensions: 9.8 in W x 6.8 in H x 1.8 in D / 24.9 cm W x 17.2 cm H x 4.6 cm D
