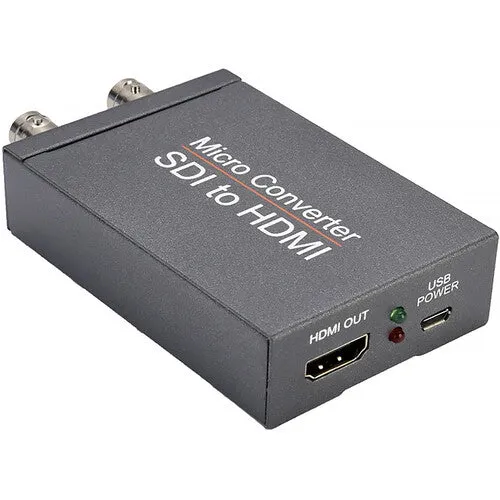

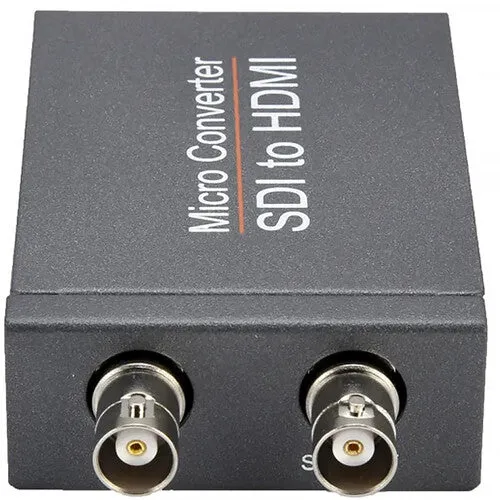

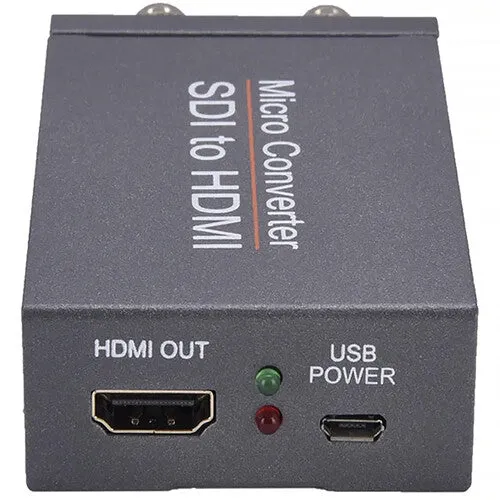

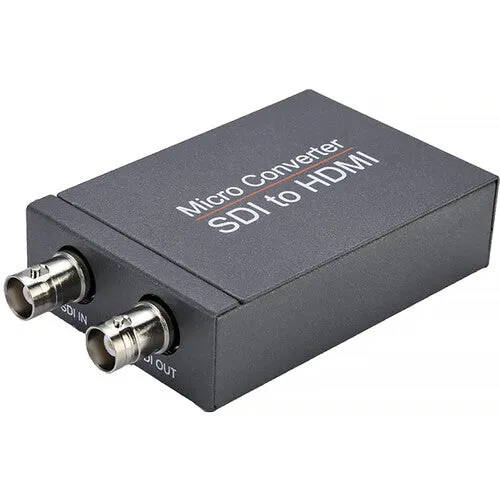

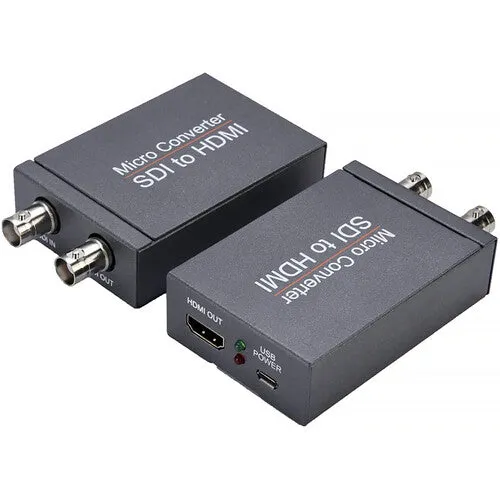

DVDO-3GSDI-HDMI-2 converts SD-SDI, HD-SDI or 3G-SDI signals from sources such as SDI cameras to an HDMI signal with synchronized video and audio for HD displays or projectors.

It supports resolutions up to 1920x1080 (1080p) and maintains integrity of the original input signal, providing a clear and high quality picture.

With its compact design, it can easily fit behind the display, in the back of a rack or directly on a camera rig.

Specifications

• Video input: 1 x SD, HD or 3G-SDI
• Video outputs: 1 x HDMI Type A (1080p/ 60Hz), 1 x SDI loop out
• SDI input resolutions: 720p/30Hz/50Hz/60Hz, 1080i/50Hz/60Hz, 1080p/24Hz/25Hz/30Hz/50Hz/60Hz
• HDMI output resolutions: 720p/50Hz/60Hz, 1080i/50Hz/60Hz, 1080p/24Hz/25Hz/30Hz/50Hz/60Hz
• SDI data rates: 270Mb/s, 1.485 Gbps, 2.97Gbps
