Play your Game Boy Color on your HDMI enabled TV! This IPS kit is Q5 windowed and includes an exclusive micro HD adapter to output your game to a modern TV. This is an advanced mod, so please review the installation procedure before purchasing!

FEATURES:

• Connects via micro HD adapter and HDMI cable to display your game right on your TV.

• Q5 Display, 25% larger than the original. RetroSix prestige shell or pre-cut shell recommended. Original shell modification required!

• Built in OSD menu to adjust many features including color modes, battery indicator, and TV modes.

• Complete with the similar features to the standard Q5 model.

• Built in 5 retro pixel effects and 32 color options for the Game Boy Color Logo.

• Purchase cutout separately to display the GBC logo in different colors.

• Trimming required on all shells for this feature (see install documentation).
• Has DMG style (Black/white) color mode.

• 3 aspect ratio options in TV display.

• 720P HDMI Output.
• Shell modification required for the micro HD port to sit properly.

• On screen controls allow you to move the display window for perfect centering.

• Change brightness and IPS color with touchpad controls.

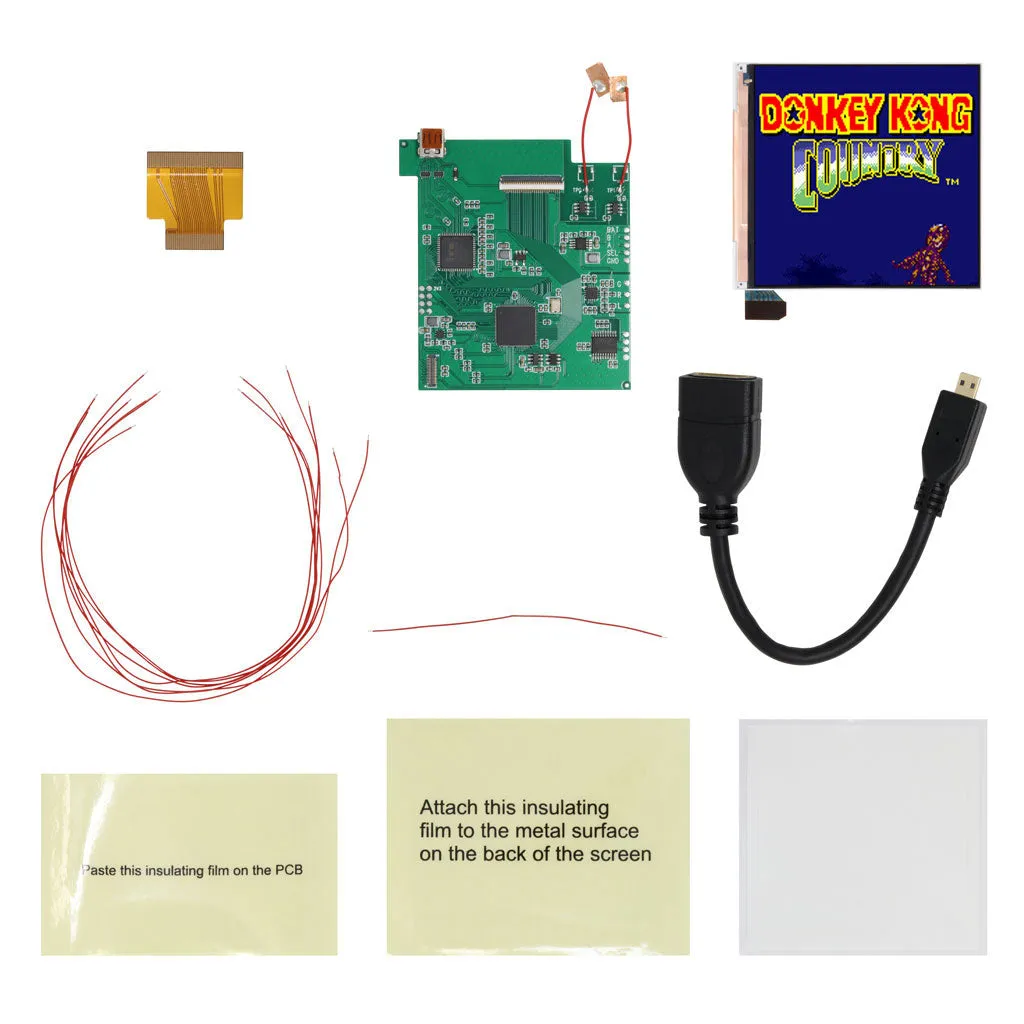

INCLUDED:

• 1x Q5 IPS LCD
• 1x PCB with micro HDMI port and two pre-soldered touch sensor wires
• 1x Adhesive
• 2x Insulation films

• 1x Ribbon
• 8x Wires
• 1x Micro HDMI to HDMI adapter

FUNCTIONS:

• To switch pixel grid modes, hold down touch sensor for color modes.
• To enter the OSD menu, hold down touch sensor for brightness controls.

PAIRS WELL WITH:

DOCUMENTATION:

NOTES:

• This kit no longer includes the Black Q5 glass lens with logo cutout/clear. Please  You will want one of the 'Clear Text' variants to take advantage of illuminated Game Boy Color logo option.
• After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please  for assistance.

WARNINGS:

• Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
• LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
• *Soldering the BAT wire is required for operation of this kit. Soldering this wire only will not void the return policy.
