Name: Game Boy Color Retro Pixel 1.0 Q5 IPS LCD Backlight Kit - FunnyPlaying
SKU: 234268

Product Details ＋

This Funnyplaying IPS LCD for the Game Boy Color comes with improved function and an enlarged viewing window. Backlight and illuminate your beloved childhood GBC with a modern IPS LCD with improved color, contrast and viewing angle.

FEATURES:

Display area is larger than the original. Shell modification required
Custom glass lens required for appropriate masking of viewing window. Please
Brackets separately.
Soldering required for brightness and retro pixel control
Touch enabled brightness control
Built-in 5 display effects.
4x Integer scaling
IPS panels are characterized as having the best color and viewing angles.
LCD and ribbon power between 0.29W and 0.68W
Does not have function of adjusting the position of the image window.

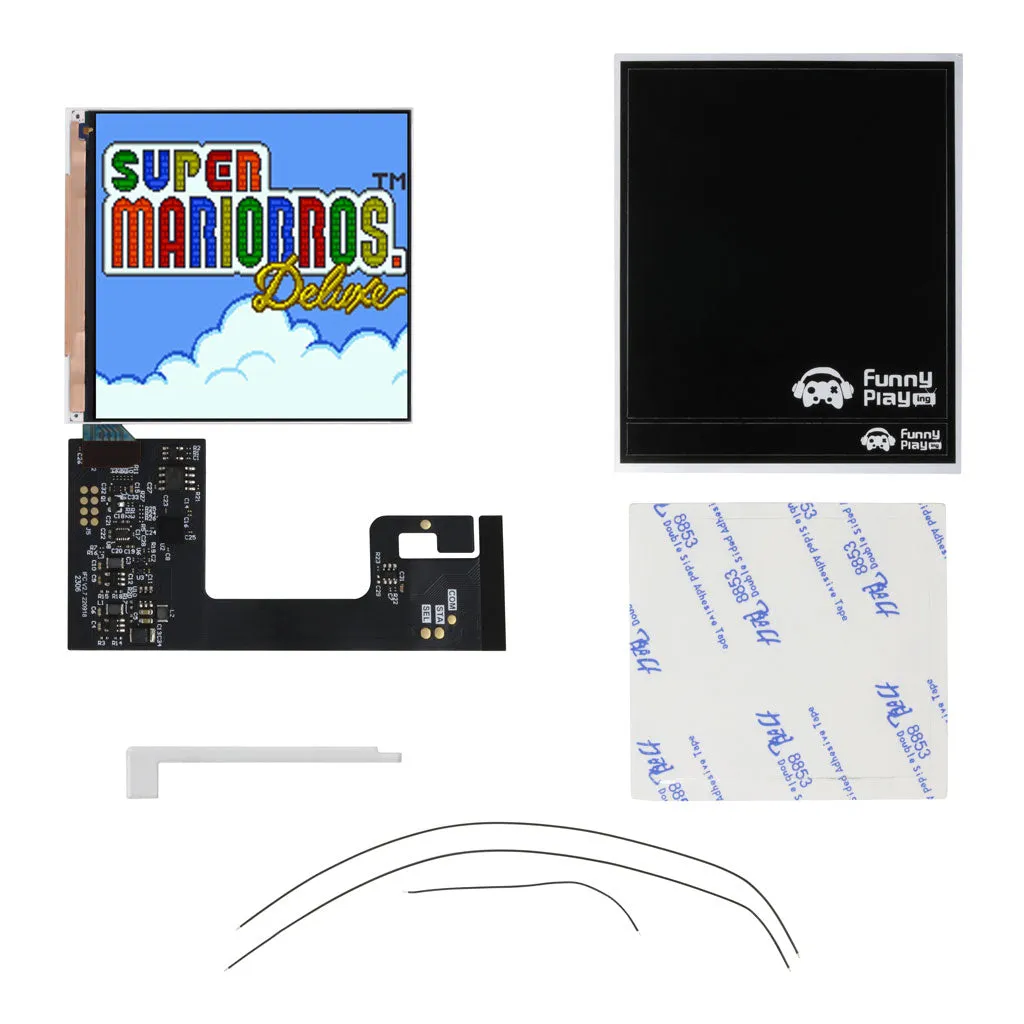

INCLUDED:

1x Q5 IPS LCD
1x PCB ribbon cable with attached touch sensor
3x Wires
1x Adhesive
1x Insulation film
1x Spacer

USING FEATURES:

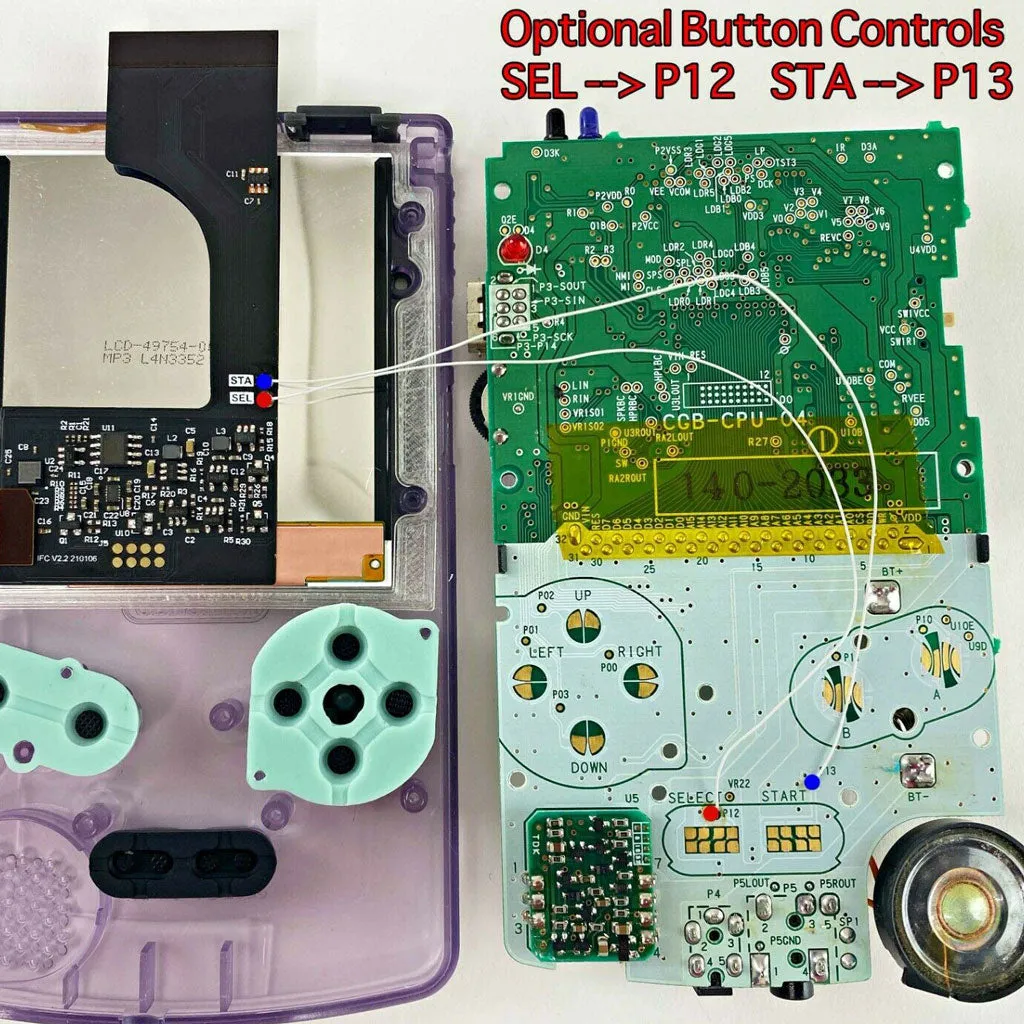

The leads of the START and SELECT buttons are retained on the ribbon.
START touch = increase brightness
SELECT touch = decrease brightness
Press START and SELECT simultaneously for 1 second to switch the display effect. (Short press the sensor button to cycle 7-segment brightness adjustment, long press to switch the display effect.)
To Move Left and Right: Hold Start and Select for 5 seconds, pressing start and select will then shift screen. Press touch sensor to swap direction you are moving. Press touch sensor two more times to go back to moving left and right. Save by holding start and select again for 5 seconds.

BUILT-IN 5 DISPLAY EFFECTS:

Full pixel copy display (display the highest brightness, gorgeous and concise)
Classic GBC display (perfectly restore the original display effect)
Classic RGB display (perfectly restore the original display effect, and the pixel gap looks smaller, the brightness will be slightly darker)
RGB display (closest to the original display, but the brightness is very low)
Grid line display (close to the display effect of DMG)

PAIRS WELL WITH:

DOCUMENTATION:

*Soldering may be required to dry test this kit. Soldering the power wire in this case will not void the return policy.

NOTES:

This kit now has a touch sensor already included on the black ribbon cable. You may use this one by simply folding into the front or back of the shell. A separate touch sensor ribbon is no longer included.
After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please for assistance.

WARNINGS:

Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
