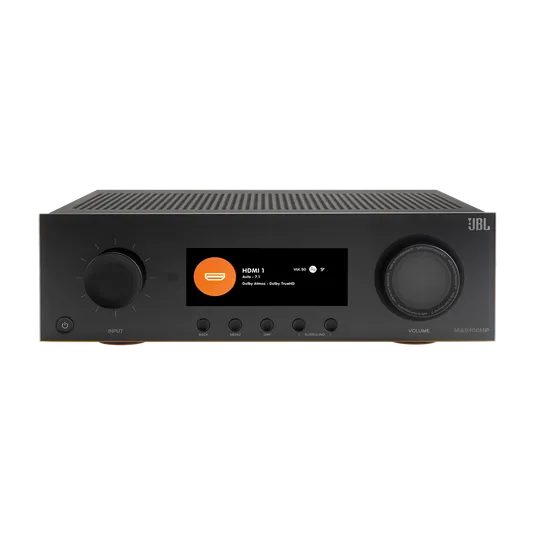

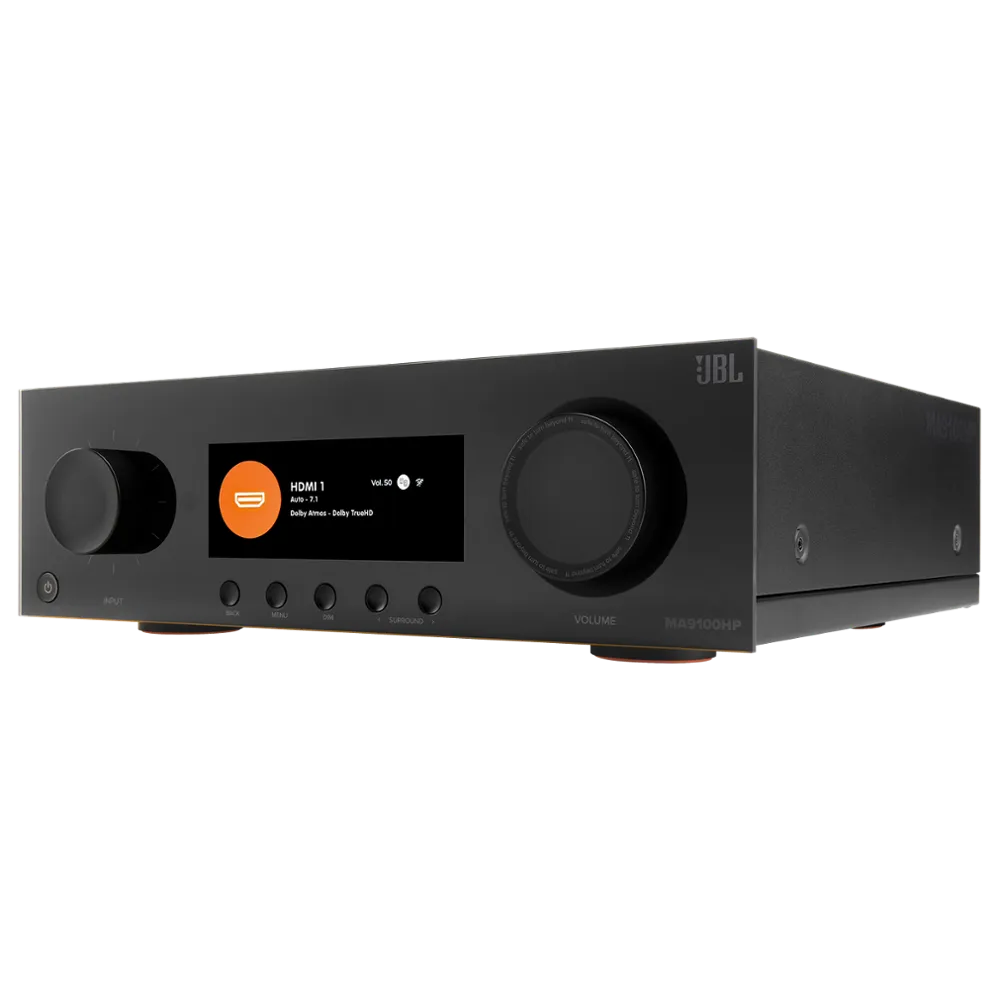

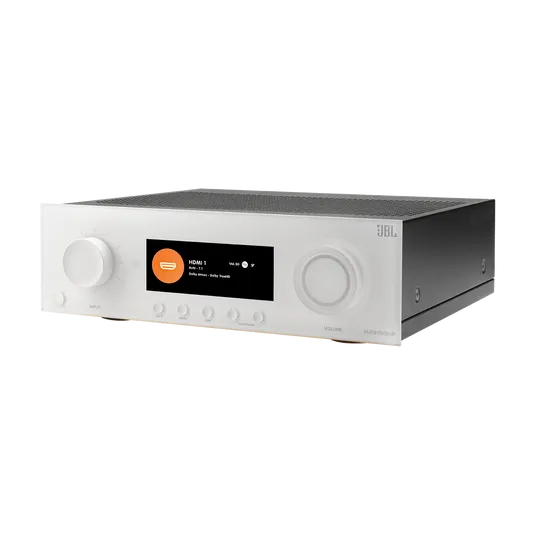

JBL - MA9100HP 8K High Performance AV Receiver

High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC

Dolby Atmos and DTS:X decoding, supports up to 9.1 or 7.1.2 or 5.1.4 channel configurations.

Details & Specs

Model	JBL MA9100HP
Video Features	HDMI eARC
	HDMI Audio Return Channel
	3x 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
	HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
	HDR 10 , Dolby Vision
Audio Features	MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps
	WMA: up to 48 kHz / 192kbps
	ALAC: up to 192 kHz / 24-bit
	FLAC: up to 192 kHz / 24-bit
	PCM / WAV / AIFF: up to 192 kHz / 24-bit
	Pure Analog
	EZ Set EQ
	Front channel bi-amp
	Digital signal processing: up to 24-bit/192kHz
Audio Specifications	9.2 Channels
	Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 140 W RMS
	Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 240 W RMS

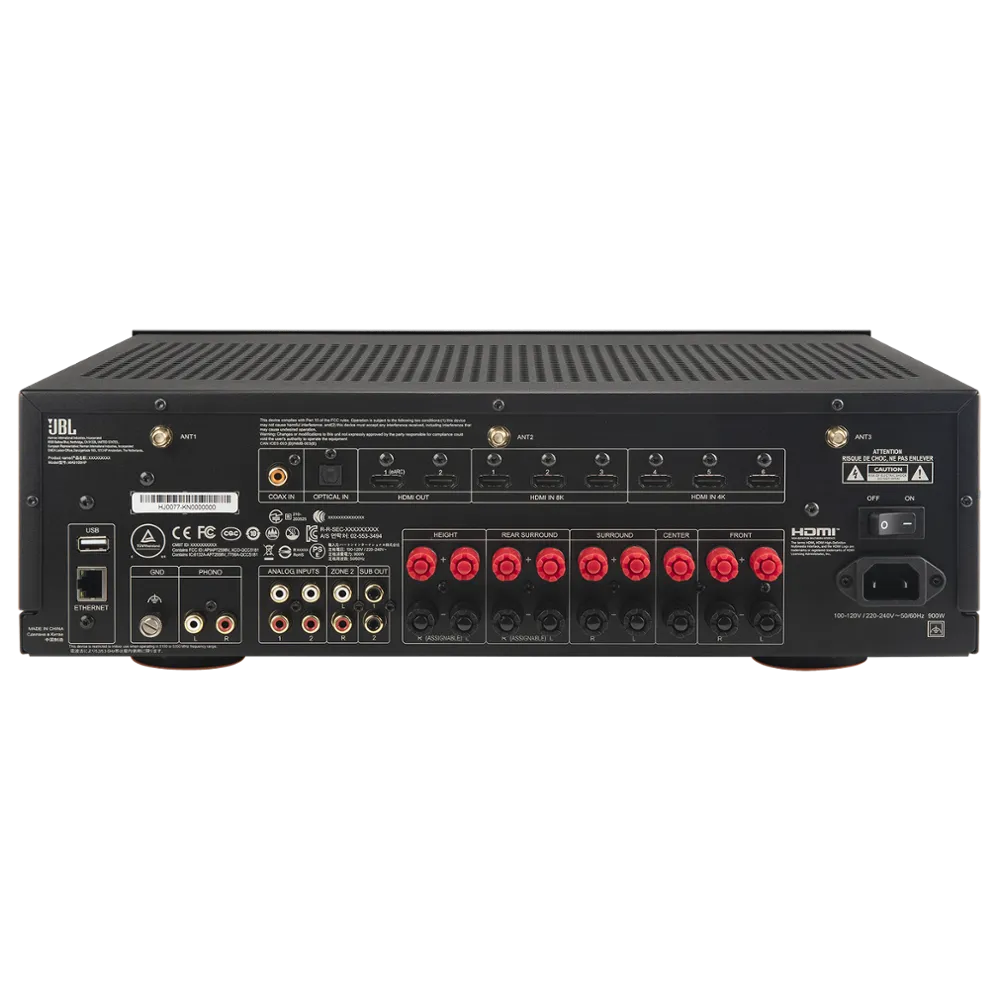

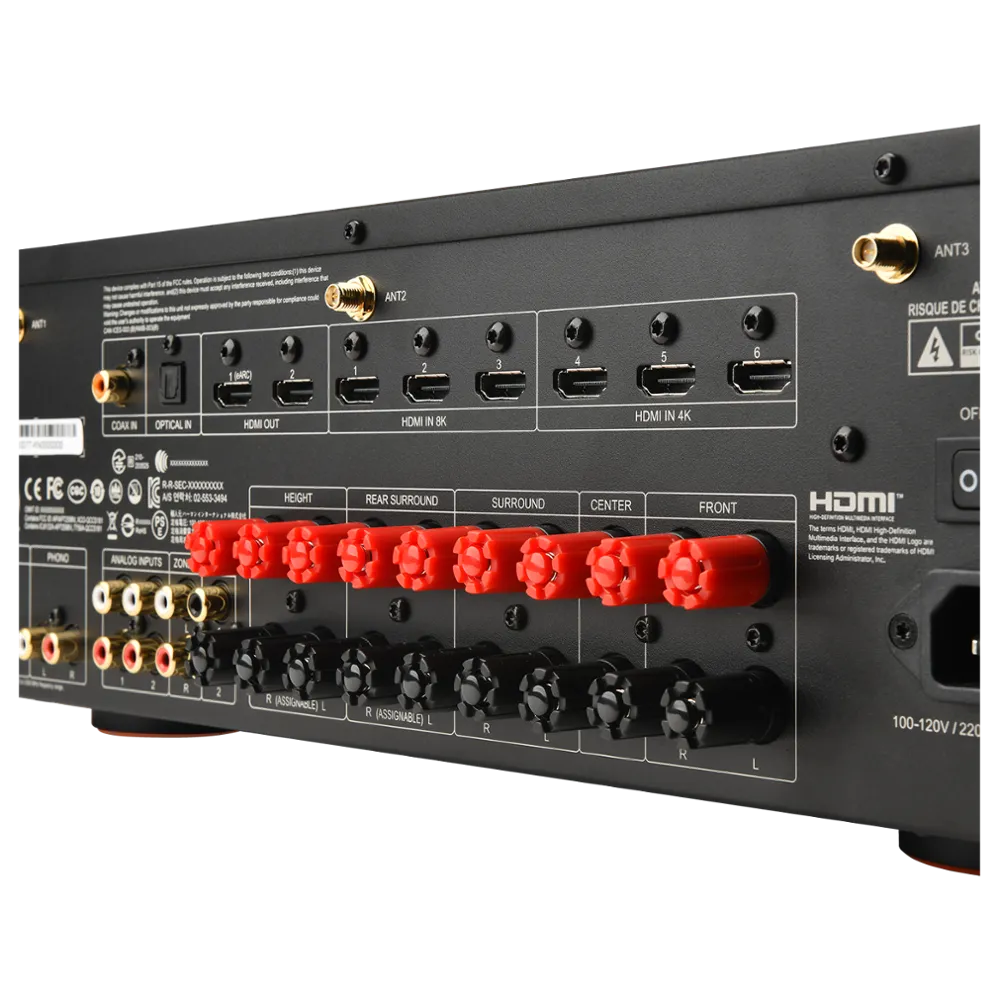

Control and Connection Specifications	HDMI Input/Output: 6 / 2
	2.4/5GHz WiFi
	v5.3 Low-Energy, APTX HD, APTX Adaptive Bluetooth Receiver
	Bluetooth Transmittor
	Digital Audio Inputs: 1 Coax, 1 Optical, 1 USB
	Stereo analog input: 2 single-ended RCA (line level), 1 Moving Magnet Phono input Ground
	Pre-Out (single ended RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2
	Ethernet: RJ45 Gigabit, WiFi Onboard
Dimensions incl. feet and speaker terminals (H x W x D)	5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)
Weight	16.8lb (7.6kg)
Mains voltage	110 – 240V, 50–60Hz
Max. power consumption	900W
Standby power consumption	<0.5W
