XM450HV/R ASL In Stock

- REPLACES - XBO 450W OFR Osram 69245 DISCONTINUED

Cross Ref:
XM450HV/R ASL (USE THIS LAMP)
UXL-553, Xe 550W Ushio 5000368 - 5000357
XBO 450W OFR Osram 69245 Discontinued (USE THIS LAMP) XM450HV/R ASL
SX4501 Superior Quartz Discontinued
UXL-451-O USHIO 5000357 Discontinued
CSX450 Discontinued
Newport 6280NS
UXL-553, Xe 550W Ushio 5000368 (USE THIS LAMP) XM450HV/R ASL

Warranty/Life : 2000h

Technical specification

Power (W) - 450
Rated Current (A.D.C.) - 25
Voltage (V.D.C.) - 18
Forced Air Cooling (m/sec.) - 4-6

Quantity Per Case: 1

Projector Reference:
Newport 94023A Solar Simulator, Sol3A Class AAA, IEC/JIS/ASTM, 2 x 2 in.
Newport 94043A Solar Simulator, Sol3A Class AAA, IEC/JIS/ASTM, 4 x 4 in.
Newport 94042A Solar Simulator, Sol2A Class ABA, 4 x 4 in., 4° Collimated Output
Newport 94041A Solar Simulator, Sol1A Class ABB, 4 x 4 in., 4° Collimated Output

XENON Foot Notes

DHP = Digital High Performance (Barco Projectors) Long Life Version
DHS = Digital High Performance Short (Barco Projectors)
DTP = Digital Threaded Pin (Christie Projectors)
DTS = Digital Threaded Super Performance (Christie Projectors)
HPN = High Performance NEC
HPS = High Performance Sony
S = Short
C = Base with Cable
H = Suitable for horizontal operation
OFR = Ozone Free
s (Operating Position) = Vertical, base down
p (Operating Position) = Horizontal
This lamp has positive pressure even when cold. Please read safety/warning instructions before using this lamp.

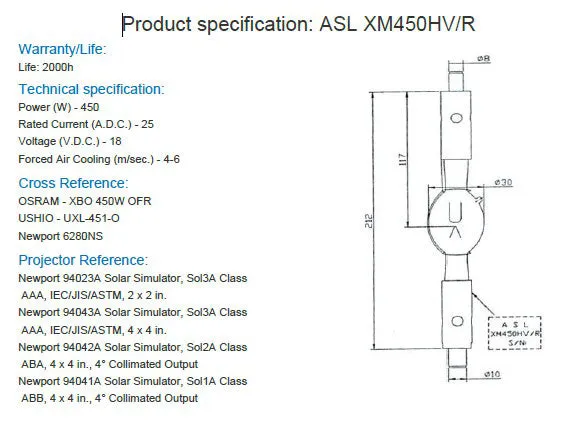

Distance a is from end of base to the respective electrode tip (cold) - see lamp drawing.
With vertical operating position: anode( ) on top.
